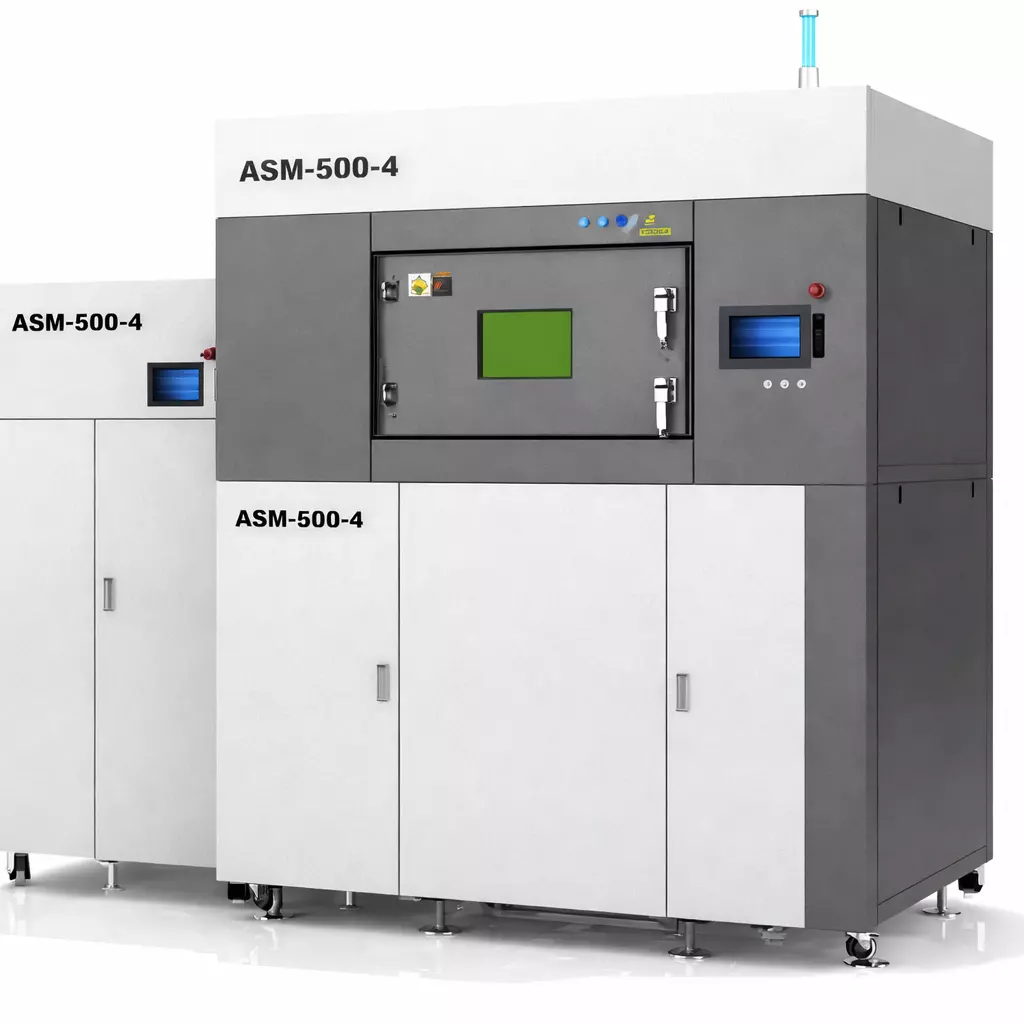

ASM 500-4

MOQ: 10 Pieces
Delivery time: 15 Day
Overall Dimensions: 1970 mm × 1420 mm × 2356 mm (excluding the top powder tank assembly)
Forming Dimensions: 500 mm × 500 mm × 300 mm
Substrate Dimensions: 530 mm × 530 mm × 60 mm
Equipment Net Weight: Approx. 3,200 kg
Powder Layer Thickness: 0.02 mm – 0.08 mm (adjustable)
Scanning Speed: Up to 10 m/s
Laser System: Fiber Laser 500 W × 4
Spot size: Φ0.04 mm–Φ0.06 mm

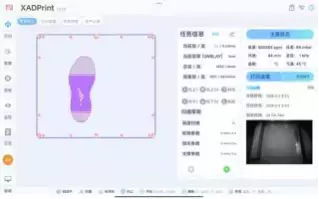

Software features: Parameter adjustment, graphical interface, remote debugging
Power requirements: 380 V ±10%, 3-phase/N/PE, 50 Hz, ≤16 kW
